1926 Story and Clark Player

1926 SCP1 (22K)

Rebuilding a player piano that has been "rebuilt" before can be a daunting task.

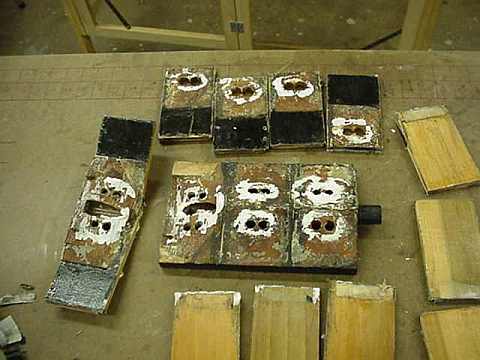

This wind motor was constructed of solid mahogany. When we disassembled it,we were pretty disappointed to find this mess.


A great time to practice anger management!

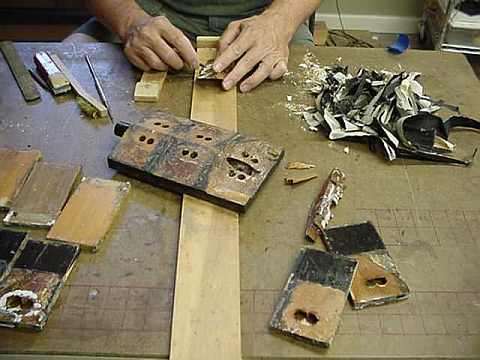

This is one example of the problems we encountered with the player action. Fortunately, the piano itself was relatively untouched.

1926 SCP2 (23K)
1926 SCP3 (21K)

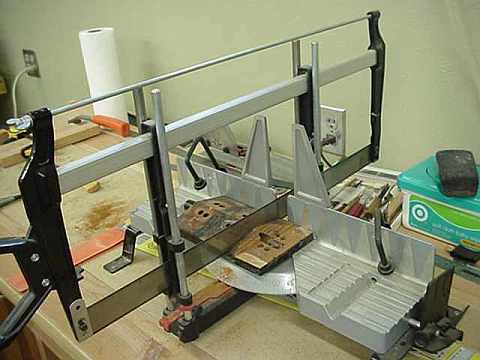

The Nobex saw is unsurpassed for removing the damaged material accurately to the proper depth.


We find hand tools indispensable in our player shop.

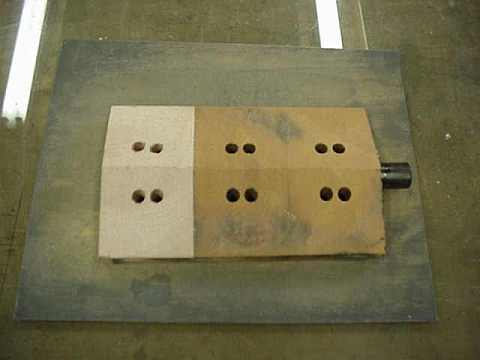

We infilled new mahogany from our stock, shaped, bored and profiled to match the trunk.

After glue sizing, the trunk is ready for assembly to the recovered pneumatics.


1926 SCP4 (10K)
1926 SCP5 (11K)

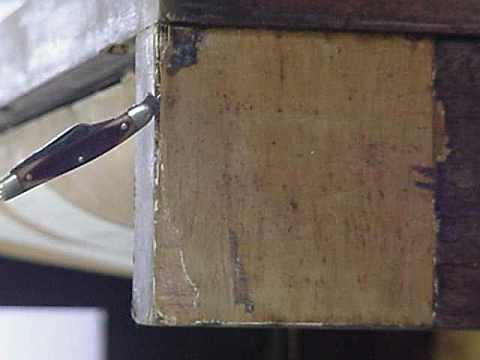

The bass cheek veneer was damaged by a previous futile attempt at repair and careless moving. In the process, the glue joint between the cross banding and the core lumber was compromised.

Cross banding has to be securely attached to balance the veneer. Once repaired, the application of the veneer patch can begin.

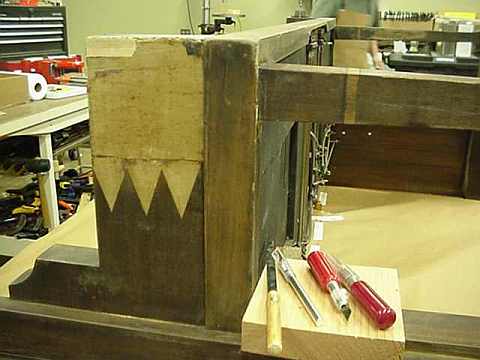

New cross banding is patched in, the original is glued back down.

1926 SCP6 (20K)
1926 SCP7 (14K)

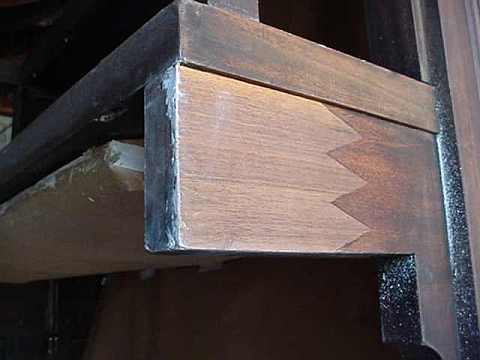

The veneer is patch will need to be stained, filled and finished to match.

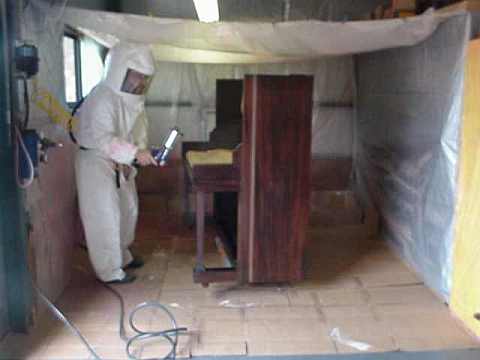

Supplied air protection and efficient air movement during the top coat process.

1926 SCP8 (12K)
1926 SCP9 (20K)

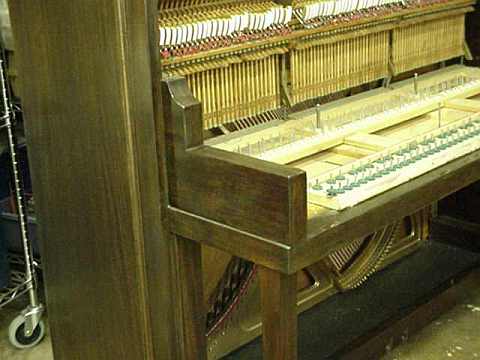

While not invisible, the patch blends well with the original veneer.

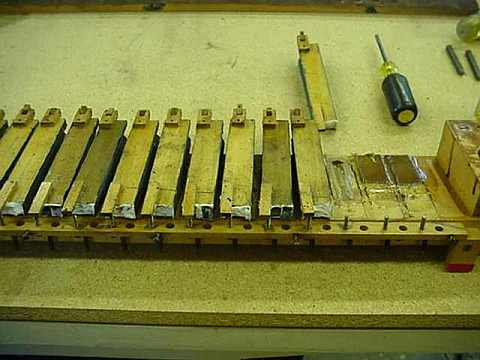

These pneumatics are basically trash, we will make a new set.

1926 SCP10 (21K)
1926 SCP11 (22K)

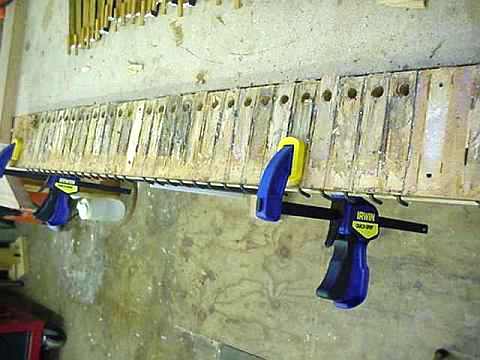

The old pneumatics were glued down with an inappropriate adhesive. We were able to remove them but with some damage to the decks.

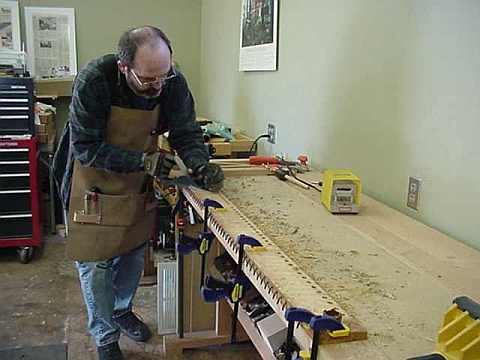

A scrub plane levels the decks. 1926 SCP12 (19K)
1926 SCP13 (21K)

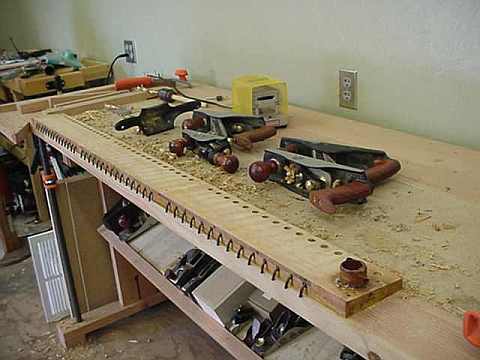

We follow up the scrub plane with smooth planes, scraper plane and a cabinet scraper.

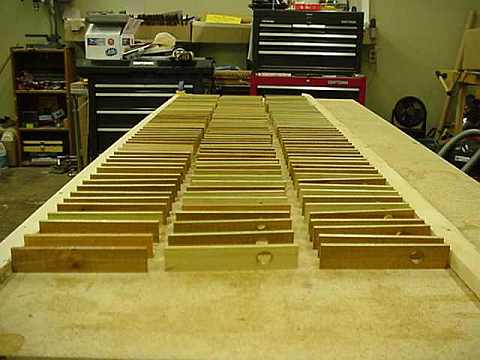

New pneumatic leaves machined from seasoned poplar, sealed with shellac. 1926 SCP14 (21K)
1926 SCP15 (20K)

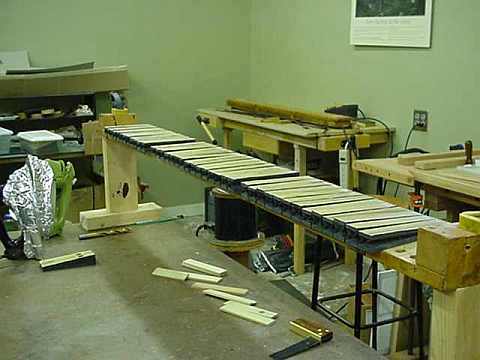

Pneumatics covered and glued to the decks.

Each pneumatic is tested before and after mounting.

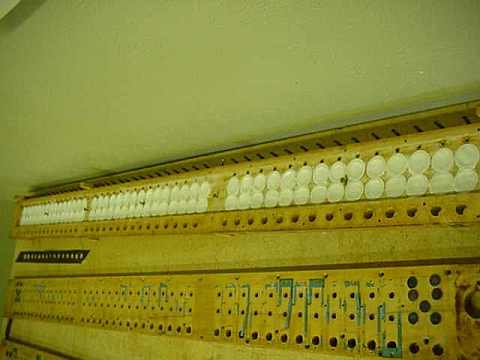

New pouches are key to making the player perform again. 1926 SCP16 (15K)

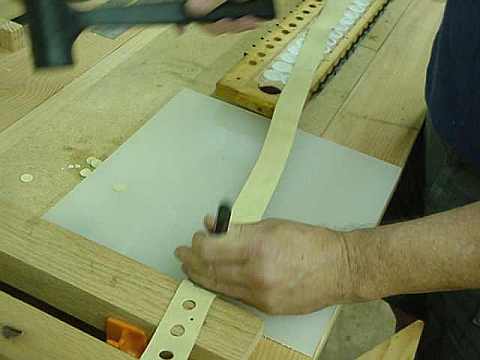

1926 SCP17 (13K) Punching gasket material requires a big hammer!

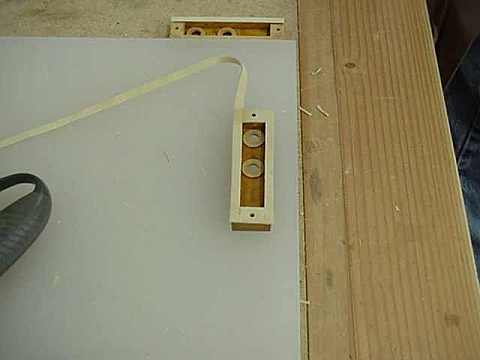

Each valve cover receives a custom made valve cover gasket.1926 SCP18 (9K)

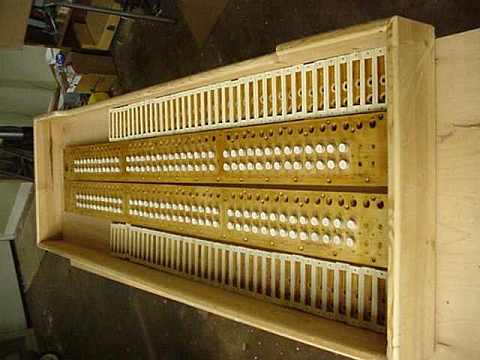

1926 SCP19 (21K) New gaskets and re leathered valves, it's starting to come together.

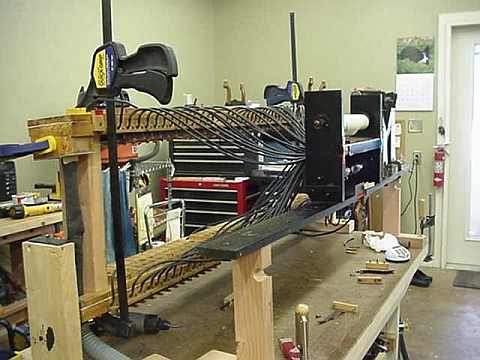

Test jig for setting valve travel, checking repetition and final leak test. 1926 SCP20 (24K)

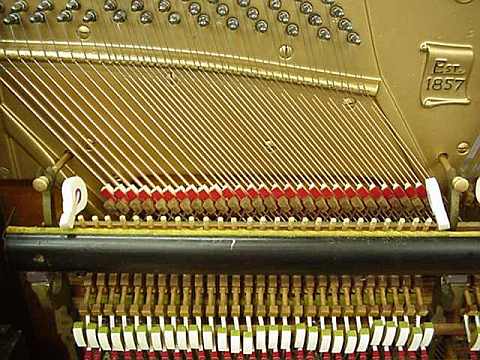

1926 SCP21 (36K) New strings, tuning pins, dampers and hammers help the piano produce the sound, touch and repetition to match the restored player system.

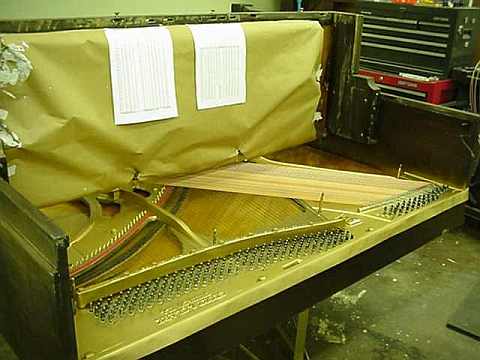

Restoring the soundboard and bridges are key to reproducing the sound of 1926. New custom scaled bass strings create smooth, consistent bass response. Matched with new hammers the result is awesome. 1926 SCP22 (22K)

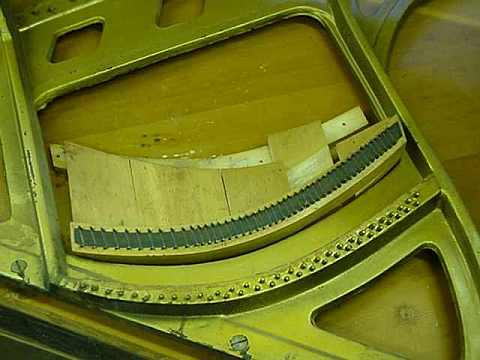

1926 SCP23 (20K) The bass bridge apron had separated in several places and fell out in pieces when the anchor screws were removed.

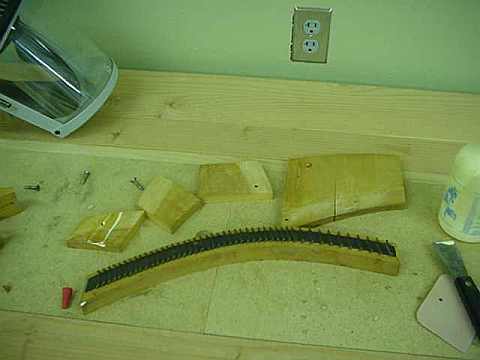

Preparation for repair of the apron and epoxy repair on the bridge cap. 1926 SCP24 (13K)

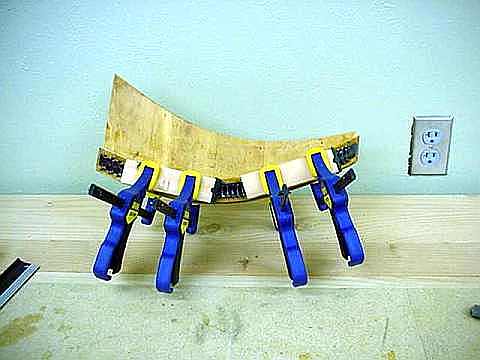

1926 SCP25 (18K) Apron repair completed and glued to bridge.

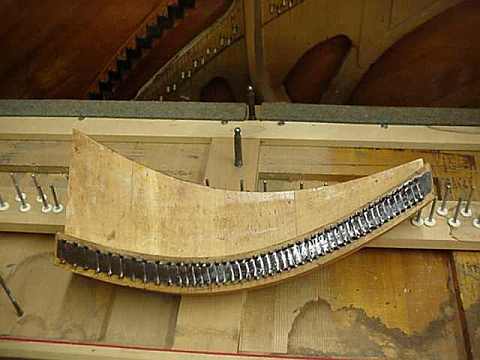

Finished repair combined with rescaled bass strings put the bass back in this piano! 1926 SCP26 (18K)
1926 SCP27 (19K)

One of the more common problems with older upright pianos is separation of the toe and leg.

It's no coincidence that this is the same end of the piano that sustained damage to the cheek veneer. Careless piano moving over the years has destroyed many fine instruments.

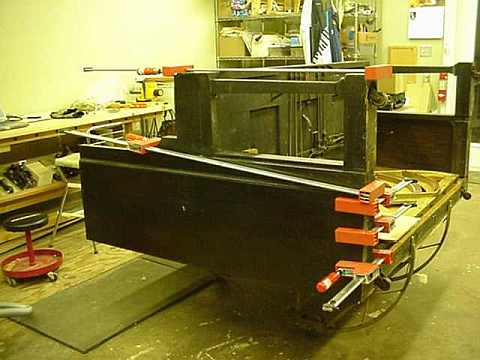

With a little patience, the proper adhesive and mechanical fastners we are back on solid footing. 1926 SCP28 (22K)
1926 SCP29

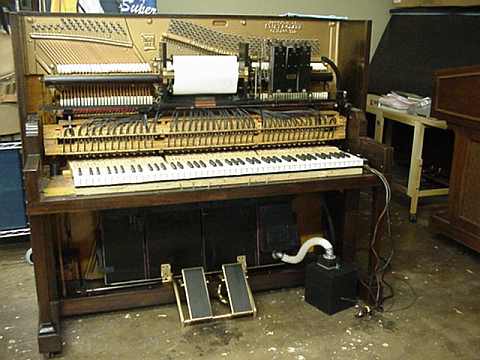

Time for a test drive before final assembly.
